Introduction to the compressed air distribution manifold

The compressed air distribution manifold is used in compressed air systems by directly installing it into the main air duct. It divides the air into multiple smaller air supply outlets, making the use of compressed air in the system easier and more convenient for each specific device.
The product is designed with a threaded connection to connect to the main compressed air pipeline system, and the other end of the manifold is designed for quick coupling with other devices or accessories in the system.

The compressed air manifold is manufactured in various designs, including horizontal base type and pedestal type. Additionally, this device is provided in a range of standard sizes, typically made of durable alloy materials with good load-bearing capacity. The exterior surface of the product is chrome-plated or zinc-plated to enhance its corrosion resistance.

Image of the compressed air distribution manifold
Image of the compressed air distribution manifold

Technical specifications of the compressed air distribution manifold

The compressed air distribution manifold is a type of accessory used in compressed air systems to connect various compressed air devices together within the system. To select the appropriate product that meets all desired features, working conditions, and ensures safety for both humans and the entire system.The selection of equipment, especially technical devices, should be based on working conditions, as well as the technical specifications of the device.

The technical specifications of the compressed air distribution manifold are as follows:

  • Design: Horizontal base type, pedestal type
  • Options for the number of distribution outlets: 2 outlets, 3 outlets, 4 outlets,…
  • Working pressure ranges: 8 bar, 10 bar, 16 bar,…
  • Operating temperature range: From 0℃ to 80℃
  • Material: Chrome-plated alloy

Structure of the compressed air distribution manifold

A complete compressed air distribution manifold is composed of various components and details, with small parts combined to form two main parts: the connection part and the body part.
The body of the compressed air distribution manifold is mostly made of aluminum, with different shapes. Inside this part, the air branches are processed and connected to the connectors. There are two common body designs: the bar-shaped base type and the round base type. Both have one end connected to the main pipeline, and the other end fitted with compressed air connectors.

The air connection part is more complex in structure compared to the body. It includes various details such as sealing gaskets, fixed ball joints, bodies, threaded connection legs, etc.

Two common designs of compressed air distribution manifold

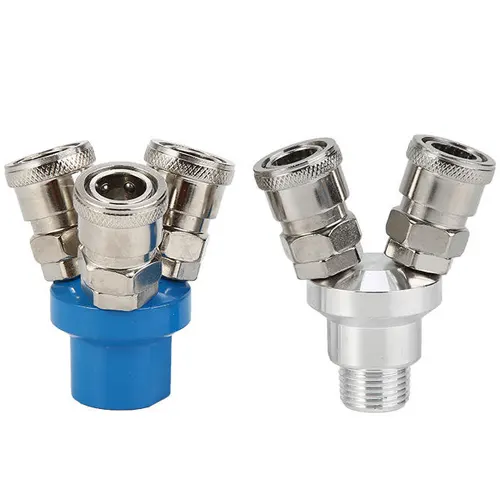

Round base compressed air distribution manifold

For the round base type compressed air distribution manifold, the number of distribution outlets is usually limited to 3. However, this design offers the advantages of compact size and sturdy structure, making it flexible for installation in various positions. However, due to the limitation on the number of distribution outlets, this type of device may be restricted in certain cases.

Round base compressed air distribution manifold
Round base compressed air distribution manifold

Horizontal base compressed air distribution manifold

The horizontal base compressed air distribution manifold has the ability to provide more air connection ports, depending on the design, ranging from 2 to 5 or 6 air outlets. With this feature, the product is suitable for application in systems with higher complexity.
Apart from the difference in shape and number of connectors, both types of compressed air distribution manifold share the same functions and materials.

Horizontal base compressed air distribution manifold
Horizontal base compressed air distribution manifold

Applications of compressed air distribution manifold

The compressed air distribution manifold is a pneumatic device used in various applications across manufacturing, maintenance and repair of machinery, automated control systems, and other industrial applications. Here are some practical applications of the compressed air distribution manifold:

  • Pressure control system: The device can be used to distribute compressed air to different pressure control devices such as pressure valves, pressure regulators, filters, etc.
  • Cooling systems: The device is used to distribute compressed air to various cooling devices such as cooling fans, high-pressure air cleaning systems, etc.
  • Applications in manufacturing systems: In many manufacturing systems that utilize pneumatic machinery or pneumatic power transmission, the compressed air distribution manifold is used to supply compressed air to devices such as pneumatic cylinders, pneumatic motors, and other pneumatic-operated machinery.
Applications of compressed air distribution manifold
Applications of compressed air distribution manifold
