Overview of Electric Control Plastic Ball Valve

The Electric Control Plastic Ball Valve is a product line of electrically controlled ball valves, with the ball valve body component made from various types of plastics such as PVC, UPVC, CPVC, and more.

The device operates using an electric actuator (also known as an electric control unit) that generates the appropriate torque and transmits it to the ball valve body.

The electrical current used for valve operation is diverse and can be either direct current or alternating current, with voltage levels of 24V, 110V, 220V, and more. Customers can choose between two operating modes: on/off or linear control.

With the ball valve body made from plastic materials, the product has excellent resistance to chemical corrosion and can be easily manufactured, which helps reduce the cost of the product.

However, the device’s pressure and temperature resistance capabilities are limited within a certain range.

Electric Control Plastic Ball Valve
Electric Control Plastic Ball Valve

See more

-51%
590.000
-18%
730.000

Convenient Use of Electric Actuator Devices

As you may already know, current control valves are operated using either electrical energy or high-pressure compressed air. If we disregard product costs, it is evident that electrically controlled valves have many superior advantages.

The Electric Control Plastic Ball Valve, integrated with an electric actuator, provides precise operation and easy connection to signal transmission wires for central control. It has a wide range of working voltages suitable for most systems in Vietnam.

Installation is easy and does not require many accessories compared to installing pneumatic actuators. There are various operating modes and functions available, depending on the specific product line, such as remote control or solar-powered operation.

Electric Drive System for Ball Valve
Electric Drive System for Ball Valve

Chemical Resistant Plastic Valve Body

Plastics in general have the advantages of durability, lightweight, and almost no chemical reactions with most corrosive substances such as acids and salt solutions.

During the production process, plastics have a lower melting temperature compared to metals and alloys, making casting and machining easier.

Although plastics have lower heat and pressure resistance compared to metals and alloys, when special manufacturing techniques and structural design calculations are applied.

Electrically controlled plastic ball valves can operate at pressures up to 16 bar, which is quite high, allowing the devices to meet the technical requirements of various systems. However, most devices are not suitable for extreme temperatures, typically ranging from -10 ℃ to 60 ℃, so customers need to consider and choose suitable products.

Plastic Valve Body
Plastic Valve Body

Diverse Range of Electrically Controlled Plastic Ball Valves at VIVA

The range of electrically controlled plastic ball valves is provided in various types, working modes, and control voltages by VIVA Industrial Equipment and Technical Company.

3-Way Electrically Controlled Plastic Ball Valve

The 3-way electrically controlled plastic ball valve is designed with 3 ports (3 valve ports) to be used at intersecting positions between 3 pipeline sections. By fully utilizing the features of this device, customers can save costs on equipment investment, especially for complex pipeline projects with multiple intersecting positions.

The 3-way electric ball valve is divided into two smaller product lines: the T-type (allowing fluid to pass through all 3 ports simultaneously) and the L-type (allowing fluid to pass through 2 out of 3 ports at a specific time).

3-Way Electrically Controlled Plastic Ball Valve
3-Way Electrically Controlled Plastic Ball Valve

2-Way Electrically Controlled Plastic Ball Valve

The 2-way design is a familiar and widely used configuration, consisting of two concentric connections. It is commonly used in straight pipe sections or as an open/close valve for storage tanks and pressure vessels.

Please write in English language.

Electric Control Ball Valve 2-Way
Electric Control Ball Valve 2-Way

Electric Control Plastic Ball Valve AC 220V-50Hz

This device uses an electric drive system that operates with alternating current (AC) at a voltage of 220V and a frequency of 50Hz. This is the standard household electricity in our country and many other countries worldwide. Therefore, the 220V electric control plastic ball valve is preferred for its convenience. It can be directly connected to the available power grid without the need for additional considerations regarding electrical safety, like any other electrical equipment.

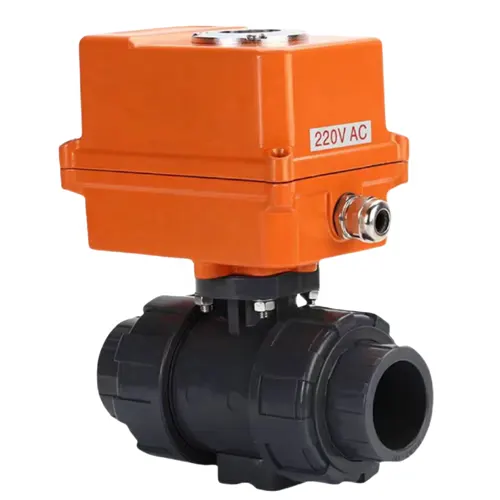

Electric Control Plastic Ball Valve AC 220V
Electric Control Plastic Ball Valve AC 220V

Electric Control Plastic Ball Valve DC 24V

Instead of using 220V electricity, the valve’s drive system will use a 24V direct current (DC) power supply. With such a low voltage level, the product provides customers with a safe drive system while still delivering good operational performance. However, electrically controlled plastic ball valves powered by electricity require a higher cost and the use of a power converter since a 24V power supply is not readily available.

Electric Control Plastic Ball Valve DC 24V
Electric Control Plastic Ball Valve DC 24V

Purchasing Policy at VIVA

After getting a general understanding of our electric control plastic ball valve products through our website, if you find our products capable of meeting your requirements, please don’t hesitate to contact us directly for specific advice and to receive detailed pricing information.

With various types and sizes of valves available from DN8 to DN100, we cannot provide specific prices until we understand the customer’s needs.

After reaching an agreement, customers can visit our company directly to inspect the products or choose a delivery method, if the geographical conditions allow.

For high-value orders, both parties will come to an agreement through a sales contract.

Finally, as a testament to the product quality, all electrically controlled ball valves supplied by VIVA are covered by a warranty period of 12 to 18 months.

Electrically controlled plastic ball valve product image
Electrically controlled plastic ball valve product image

See more products Electrically controlled sanitary ball valve
