Quick connector for compressed air

Giá gốc là: 5.000 ₫.Giá hiện tại là: 4.000 ₫.

Tình trạng:
Bảo hành:
Mã: 92890 Danh mục:

Cập nhật lần cuối ngày 08/11/2024 lúc 09:09 sáng

Introduction to Quick Connectors for Compressed Air

Quick connectors for compressed air are indispensable components in compressed air systems. They are used to quickly and effectively connect various compressed air devices within the system to each other, while still meeting the requirements for pressure resistance and easy disassembly when connecting or disconnecting system components.

Quick connectors for compressed air are commonly used to connect:

  • Two sections of compressed air hoses together.
  • Compressed air hoses to pneumatic cylinders.
  • Compressed air hoses to control valves and pneumatic distribution systems.

Based on practical usage, quick connectors for compressed air are available in various shapes and offer different types of connections, including plug-in connections and threaded connections.

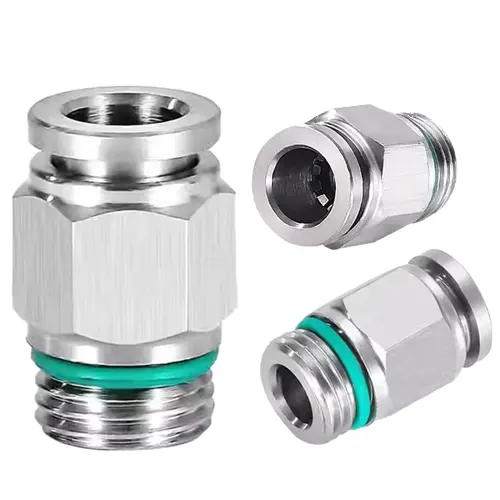

Image of a quick connector for compressed air
Image of a quick connector for compressed air

Technical Specifications of Quick Connectors for Compressed Air

Based on practical working conditions, quick connectors for compressed air are available in various shapes and functions. However, the main task of this type of device is still to connect different types of equipment and accessories within the system.

Here are the basic specifications of the quick connectors for compressed air product line. You can refer to them for a better understanding of this device.

  • Basic manufacturing materials: Plastic, brass, stainless steel, etc.
  • Basic designs: Straight connectors, L-shaped connectors, T-shaped connectors, etc.
  • Connection type: Threaded connection, quick connect
  • Thread type: Straight thread or tapered thread
  • Connector size: 4mm, 6mm, 8mm, 10mm, etc.
  • Operating temperature range: From 0℃ to 80℃ (depending on the manufacturing material)
  • Operating pressure range: 10 bar, 16 bar
  • Brands: Festo – Germany, SMC – Japan, Airtac – Taiwan, etc.
Technical Specifications of Quick Connectors for Compressed Air
Technical Specifications of Quick Connectors for Compressed Air

Structure of Quick Connectors for Compressed Air

In general, quick connectors for compressed air are typically composed of two main parts: the connector head and the body. However, in practice, due to the diversity of types, quick connectors can have certain differences depending on the specific product type.

The body of the quick connectors for compressed air can be made of plastic, brass, or stainless steel, depending on the design purpose. Additionally, the body of the quick connector is the main component that determines the shape of this accessory. It is designed with passages that allow the fluid to flow through, and it also serves the purpose of connecting the connectors together.

The connector head is assembled from various small components, including sealing gaskets, cushioning rings, clamps, and more.

Structure of Quick Connectors for Compressed Air
Structure of Quick Connectors for Compressed Air

Common Types of Quick Connectors for Compressed Air

Designed as accessories that facilitate the connection of components within a compressed air system, these connectors are provided in various shapes to optimize their connecting capabilities. There are numerous popular variations of quick connectors for compressed air, and some of the most common ones include the T-shaped connectors, Y-shaped connectors, L-shaped connectors, and more.

Straight Air Connectors

This type of quick connector is widely used due to its simple design and versatility. It is suitable for most current compressed air systems. Additionally, this product line offers two smaller subtypes: the dual quick connector and the single quick connector with one threaded end.

Straight Air Connectors
Straight Air Connectors

T-shaped Air Connectors

The name “T-shaped” quick connectors for compressed air derives from their external shape. These devices are designed with three connecting ends, making them suitable for connecting three sections of pipes together. The intersection of these straight lines forms the shape of the letter T.

T-shaped Air Connectors
T-shaped Air Connectors

Y-shaped Air Connectors

Y-shaped quick connectors for compressed air are used to connect one pipe with two parallel pipes.

Y-shaped Air Connectors
Y-shaped Air Connectors

Cross-shaped Air Connectors

Cross-shaped quick connectors for compressed air are used to connect four intersecting pipe segments. Typically, this type of connector is encountered in more complex systems rather than in regular systems.

Cross-shaped Air Connectors
Cross-shaped Air Connectors

Characteristics of Quick Connectors for Compressed Air

The characteristics of quick connectors for compressed air include:

  • Quick and easy connection: Quick connectors are used to provide fast connections between various devices and accessories in the system without the need for additional tools. In some cases, the connections can be easily disconnected.
  • High stability and durability: Connectors are designed to ensure a near-perfect seal under the pressure of compressed air, considering the vibrations and movements typically present in compressed air systems. They need to maintain stability throughout the working process.
  • Wide range of applications: Quick connectors are essential accessories in compressed air systems and are utilized in various industries where compressed air systems are employed to enhance production capabilities.
